Buy the RR14 EVO 3 Railroad working Platform

Technical Specifications

Working Height

14.10 m

Lateral range

9.30 m

Load capacity

400 kg

Basket Rotation

180°

Dimensions (L x W x H)

7.86 x 2.36 x 3.01 m

Max. Travel Speed

15.00 km/h

Dead weight

13.5–13.9 metric tons

Flexible Operation on Rail and Road

The RR14-EVO3 was specifically designed to ensure maximum flexibility when working in a wide variety of environments. Thanks to its innovative 2-way technology, it can seamlessly switch between road and rail operation, enabling rapid adaptation to various application scenarios. The transition is facilitated by a hydrostatic drive and braking system that delivers reliable performance on both tracks and uneven terrain. With an impressive working height of 14.40 meters and a lateral reach of 9.30 meters, it effortlessly reaches even hard-to-access areas.

All-wheel steering and automatic leveling make the machine particularly maneuverable and stable—ideal for working on tracks with various gauge widths, including the standard width of 1,435 mm. Whether for maintenance work on rail lines, overhead lines, bridges, or in tunnels: The RR14-EVO3 combines its versatility with a high load capacity of up to 400 kg, making it perfect for use by three people and additional equipment. With a speed of up to 19 km/h on tracks, it is also extremely efficient when traveling to remote job sites.

Maximum Safety

The RR14-EVO3 sets new standards in workplace safety. For work on uneven or sloped surfaces, the machine is equipped with automatic tower leveling, which compensates for inclines and guarantees maximum stability. For operation in electrified track areas, it features special safety precautions, including a key lock to minimize risks when working near power lines.

In addition, a negative-acting braking system ensures that the platform comes to a safe stop, even in emergency situations. Red-and-white safety lighting makes the machine highly visible at night or in poor visibility conditions. For critical applications in multi-track rail networks, the RR14-EVO3 is equipped with a 180° lock that prevents unintended movements. In the event of an emergency, an additional emergency diesel engine provides an extra layer of safety, ensuring that the platform remains operational at all times—even in the event of unexpected technical malfunctions.

Unparalleled Ease of Use

The RR14-EVO3 was developed with the goal of maximizing ease of use for personnel. All essential functions of the platform can be controlled directly from the work basket. The generously sized work basket accommodates three people and equipment, which significantly simplifies the workflow. Additional controls, such as a foot switch in the basket, allow the operator to initiate machine movements without having to perform complicated hand movements.

Precise operation is ensured by a finely tuned proportional control system that enables stepless movement of the work platform. An integrated diagnostic display facilitates maintenance and directly indicates potential faults. Additional convenience features, such as all-wheel steering, a height limit switch, and an optional pantograph for catenary measurements, make operation particularly user-friendly. Optionally, the machine can be equipped with a camera system that provides the operator with improved visibility—especially when aligning with the tracks or maneuvering in tight spaces.

Technical Details

Standard track width: 1435 mm
Hydrostatic rail drive and braking system
Travel speed: 18 km/h
Multiple driving modes: 4WD/2WD/crawler mode
All-wheel steering: For improved track alignment in tight spaces
Automatic leveling: To compensate for superelevation up to 200 mm
Optional pantograph: Enables distance measurements between the top of the rail and the overhead wire
A toolbox mounted on the chassis
First-aid kit
Fire extinguisher + mount
Mount for 2 Libo 2/S49 brake shoes
Work lights inside the basket and above the rail axles
Lifting height limit when traveling under energized overhead lines
4.3" diagnostic display in the work basket and on the ground control panel
High-performance biodegradable hydraulic oil: Addinol Ecosynth Hees EL 46
Zetfon warning horn
Hydraulic connections for trailer operation (not permitted on DB Infra GO infrastructure)
Automatic leveling: Also in superelevation (up to 200 mm)
Diagnostic systems: For easy maintenance and servicing (remote maintenance and telemetry optional)
HATZ 3H50 EU Stage V diesel engine: For future-proof operation with an integrated diesel particulate filter
Customer portal: Knowledge base with common troubleshooting guides and access to error descriptions and documentation

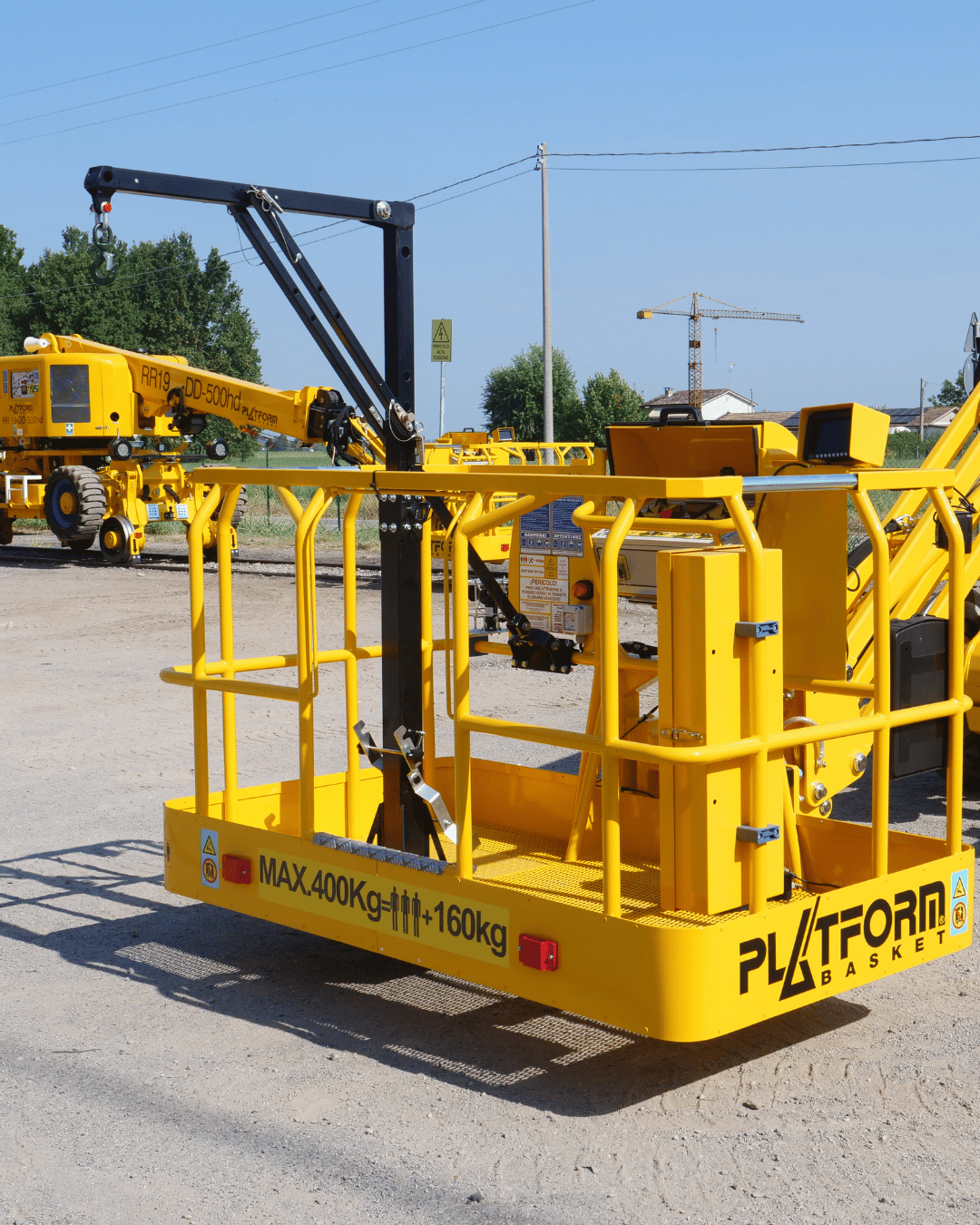

Crane in the Work Basket

The integrated crane function, compliant with EN 280-2:2022, allows for the use of a 200-kg crane directly in the work basket. Two people can be in the basket at the same time, enabling lifting and assembly work to be performed safely and efficiently at height.

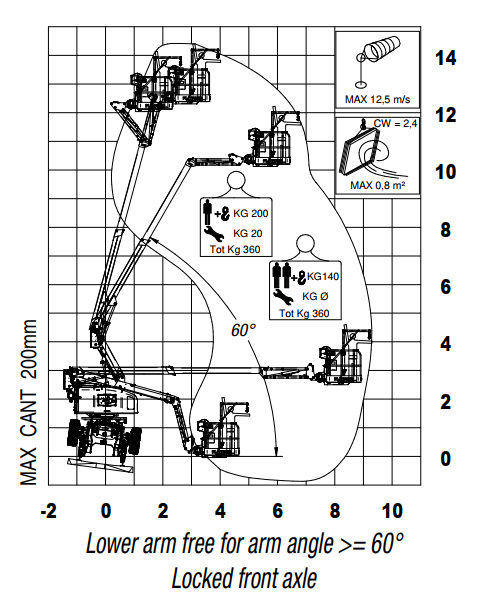

This innovative solution allows tools, materials, or components to be moved and precisely positioned directly at the work site. The operating diagram corresponds to that of the 400-kg version, and the load capacity is reduced by only about 40 kg due to the crane function. This ensures maximum flexibility while maintaining the work platform’s high performance.

The RR14-EVO3 dual-mode aerial work platform from Platform Basket is an outstanding example of innovative technology in the field of aerial access solutions. With an impressive working height of 14.40 meters and a lateral reach of 9.30 meters, it offers flexible application possibilities both on the road and on the rails. The third generation of this work platform features numerous improvements, including multiple drive options and various track widths, which allow it to be adapted to different operating conditions.

A special feature of the RR14-EVO3 is its hydrostatic rail drive and braking system, which, in combination with all-wheel steering, ensures easy tracking on the rails. The automatic leveling system compensates for overhangs, thereby ensuring a safe working environment. In addition, the platform is equipped with an optional pantograph that enables precise measurements of the contact wire. These technical refinements make the RR14-EVO3 an indispensable tool for maintenance work on the rail network.

The RR14-EVO3 offers not only technical excellence but also a high level of safety and ease of use. A comprehensive safety package—which includes, among other features, a key interlock and a negative braking system—protects operators when working in challenging environments. The spacious work basket, with a load capacity of 400 kg, and the intuitive controls accessible from inside the basket ensure comfortable and efficient operation. With its certification by DB Netz, the RR14-EVO3 is the ideal solution for a wide range of applications in the rail sector.
