Buy the RR19-500 Railroad working Platform

Technical Specifications

Working Height

19.00 m

Lateral Range

12.60 m

Load capacity

500 kg

Basket Rotation

180°

Dimensions (L x W x H)

9.50 x 2.40 x 3.00 m

Max. Travel Speed

19.00 km/h

Dead weight

19.5–22.5 metric tons

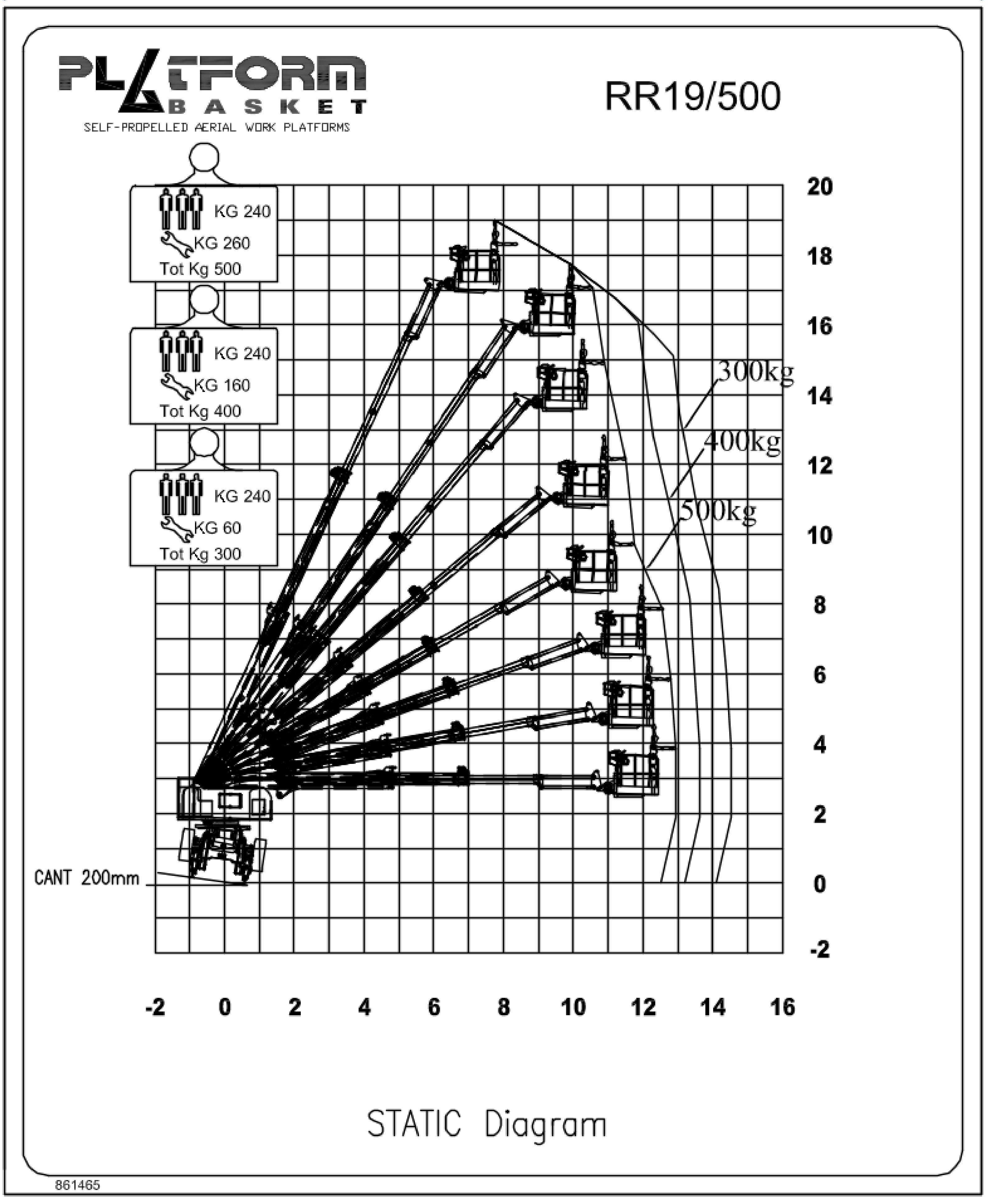

The only one of its kind—19-meter working height with maximum reach

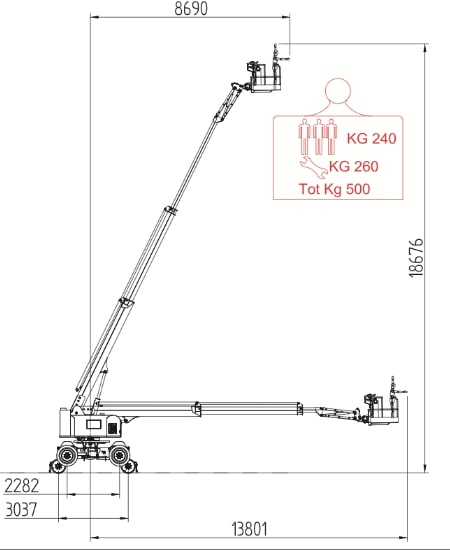

The RR19-500 is a true powerhouse for railwork. With an impressive working height of 19 meters and a lateral reach of 13.80 meters, it sets new standards. It is the only machine on the market that offers this combination of height and reach—ideal for overhead line work, signal maintenance, or bridge inspections. Its compact design facilitates transport, while the 500 kg load capacity of the work platform ensures maximum efficiency.

Maximum safety and stability—even on uneven terrain

Thanks to its automatic leveling system, the RR19-500 compensates for inclines of up to 200 mm, ensuring it remains stable even on uneven ground or tracks with superelevation. The innovative hydrostatic drive and braking system ensures safe movement, while the all-wheel steering provides optimal maneuverability. These technical features make the RR19-500 a reliable partner for demanding tasks in challenging conditions.

Flexibility and High-Tech for Maximum Efficiency

The RR19-500 can be perfectly adapted to a variety of requirements. Thanks to its 4x4x4 drive system, radio remote control, and numerous optional features such as a generator, onboard camera, or black box, it remains highly versatile. The ability to choose between diesel, electric, or hybrid powertrains ensures a future-proof solution in any environment. This consistent refinement of the proven RR14 model makes the RR19-500 the top choice for anyone who values performance, safety, and efficiency.

Technical Details

Track Width & Undercarriage: 1,435 mm, hydrostatic track drive and braking system
Driving Modes & Steering: 4WD/2WD/crawler mode, all-wheel steering for improved track alignment
Stability: Automatic leveling up to 200 mm to compensate for overhang
Measurement & Safety Systems: Optional pantograph for contact wire measurement, mechanical & electronic lift/swing limits
Engine: EU Stage V Hatz 4H50 diesel
Diagnostic Technology: 2 diagnostic displays

The RR19-500 from Platform Basket is an outstanding aerial work platform designed specifically for use on rails. With an impressive working height of 19 meters and a lateral reach of 13.80 meters, it sets new standards in the industry. The platform is certified to RIL931 DB standards and features automatic leveling for superelevations of up to 200 mm, allowing for nearly full utilization of the working envelope. These features make the RR19-500 an indispensable tool for demanding rail-based work.

The RR19-500’s versatility is underscored by its compact design and ease of transport. Despite its enormous reach, the machine remains maneuverable and can be easily transported to the job site on a flatbed trailer. The 500-kg load capacity of the work basket is unique and allows for the safe transport of up to three people. Thanks to all-wheel drive and four-wheel steering, the machine is extremely maneuverable and can optionally be controlled via radio remote control. Numerous optional features, such as a generator or remote diagnostics, round out the package.

The RR19-500 is the result of continuous development and innovation, building on the success of the RR14. With over 100 units sold in the German-speaking region, Platform Basket’s RR models are leaders in the field of dual-mode technology. The RR19-500 not only offers greater load capacity and extended working height but also the proven features that make our machines so successful. It is ideal for the installation and maintenance of overhead lines, signal and station maintenance, as well as for bridge and tunnel work.
