Buy crawler work platform 10 m - Heron10 mast platform

9.60 meter working height
3.45 meters lateral outreach
230 kg load capacity
OPTIONAL: battery (E)/ battery-petrol version (ED)

Request Data sheet
Heron 10 mast working platform on crawler chassis
Back to overview
Buy tracked work platforms
Back

Follow us for updates

SPECIAL FEATURES

The HERON 10 mast platform from the Platform Basket brand is a lightweight work platform that meets all requirements. With its low weight, it can be easily transported with trailers up to a total weight of 3.5 tons. The simple operation is perfect for maintenance work, painting, window cleaning and tree care. Thanks to its light weight, the HERON 10 can also be used inside buildings without damaging sensitive floors. Whether it's a terrace or an attic, the HERON 10 is the perfect choice for any project.

OVERVIEW OF FACTS

Technical data

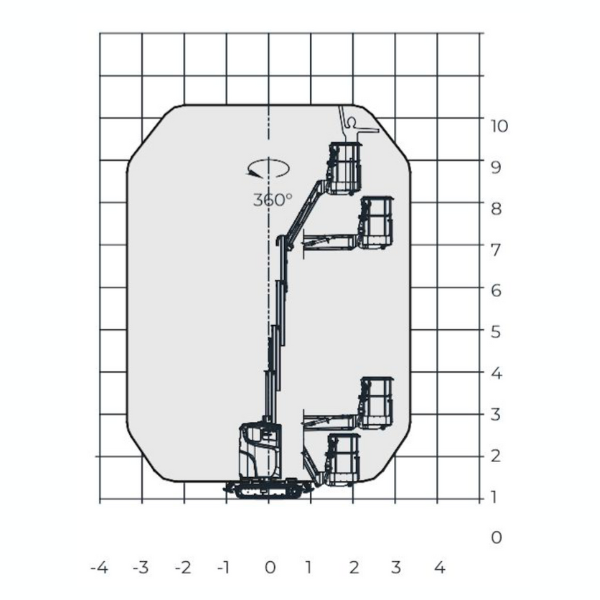

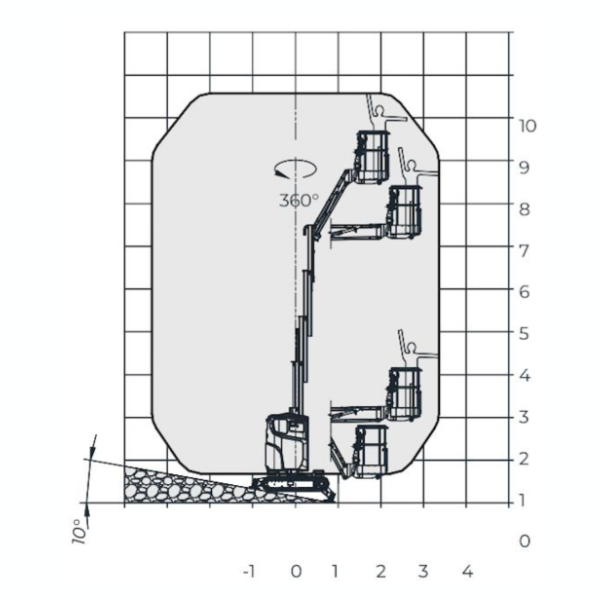

Working height
9,60m
Lateral reach
3,45m
Rotation range
180°+180°
Basket rotation
70+70°
Basket dimensions (LxWxH)
1.20x0.87x1.10m
Control system
Electric
Basket load
230 kg
Weight
2,7 t

Standard equipment

The standard equipment of the Platform Basket mast working platform includes the following features:

  • KUBOTA diesel engine, water-cooled, with automatic throttle control

  • Automatic stabilization with 4 independent outriggers

  • Basket for two people with a capacity of 230 kg, light and easy to remove

  • Radio remote control with diagnostic display for basket and ground control

  • Ground control (cable always available in the event of a flat battery or poor frequencies).

  • Spare battery and charger for radio remote control, inside the machine

  • Coming home function to bring the machine back into transport position

  • Proportional control

  • 220V socket in the work basket

  • High-pressure air/water lines

  • Diagnostic display

  • Integrated safety systems - Emergency lowering system\

  • Hand pump for emergencies

  • Lifting points for forklift trucks

  • Lifting points for cranes

Heron 10 mast working platform on crawler chassis (2) (1)
Cable winch transparent
Crane function within a few seconds

Cable winch with 250kg

The cable winch has a maximum lifting capacity of 250 kg and a cable length of 35 m. The maximum lifting speed is 20 m/min and the rope diameter is 6 mm. The weight of the cable winch is 65 kg. The winch function complies with the following standards: EN 13000 Cranes - Mobile cranes; ISO4301-1 / 2 Cranes. The cable winch has been specially developed for quick installation and removal.

2 drive types

Diesel or bi-drive

Your choice: diesel engine and optional electric motor or electric motor with battery drive.

HERON10
HERON10E
Heron 10 mast working platform on crawler chassis (2)

Are you interested in the HERON 10?

Send us a non-binding inquiry.
Heron10 - Side and rear

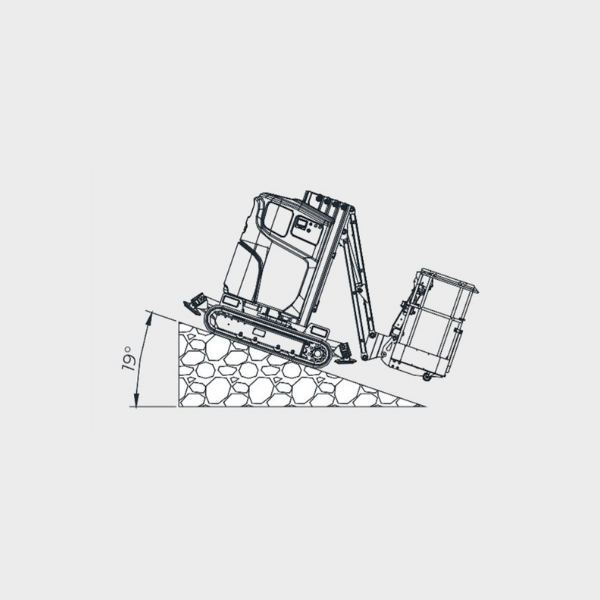

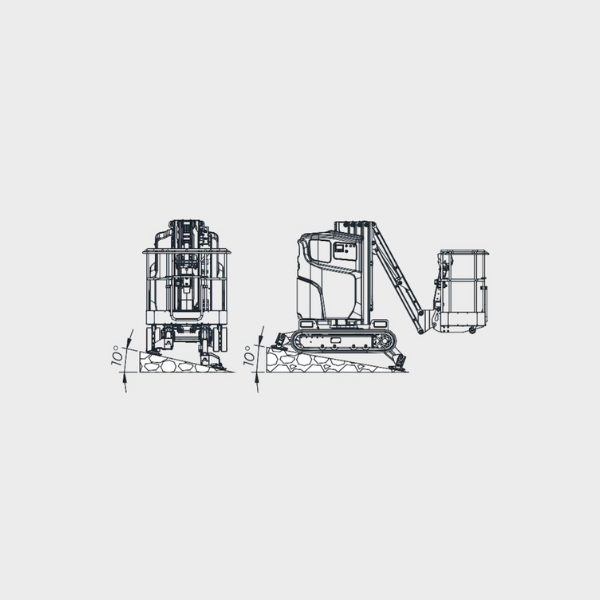

The self-propelled HERON 10 mast platform is the ideal choice for anyone who needs a flexible work platform. Whether in confined spaces or on uneven terrain - the HERON 10 is always ready for action. With its chain and steering system, it is characterized by its manoeuvrability and can even turn itself, which further increases its manoeuvrability. The automatic stabilization system ensures that the machine is always safe and stable, regardless of the slope on which it is positioned. This allows the user to concentrate fully on the work in the upper part of the machine.

Another particularly practical feature is the integrated radio remote control, which allows the HERON 10 to be controlled intuitively. This allows the work platform to be loaded safely onto ramps or even used as a mini crane. The self-propelled HERON 10 is available in two versions: with diesel drive for outdoor use or as a bi-energy version with an additional 230 V AC motor for indoor use. For particularly demanding tasks and environmentally conscious use, there is also the HERON 10 E with a lithium battery and a powerful charger. This enables use without any kind of emissions.

Any questions?

What are the technical specifications of the HERON 10 mast platform?

With its diesel or electric motor, the self-propelled HERON 10 mast working platform offers a working height of 9.6 m and a lateral outreach of 3.45 m. It can lift loads of up to 230 kg and has a crawler chassis and automatic stabilization for optimum stability and low ground loading.

The self-propelled HERON 10 mast working platform is equipped with a powerful diesel engine or an optional electric motor with battery drive. Its telescopic mast reaches an impressive working height of 9.6 m and offers a lateral outreach of 3.45 m. With a basket load of 230 kg, a total weight of 2,800 kg and a maximum working height of 9.6 m, it is capable of lifting and transporting heavy loads safely at height. The HERON 10 mast platform model also has a robust crawler chassis and automatic stabilization, which ensure optimum stability and a low ground load due to its low weight.

What applications does the self-propelled HERON 10 mast platform offer?

The HERON 10 mast platform is versatile and can be used for installations, maintenance, cleaning, repairs and inspections, both indoors and outdoors, and is particularly suitable for confined or hard-to-reach places.

The HERON 10 mast platform offers a wide range of possible uses in various industries and areas of application. The self-propelled telescopic mast platform is suitable for installations, maintenance work, cleaning work, repairs and inspections both indoors and outdoors. Its compact telescopic mast with a long reach and working height as well as its high maneuverability make it ideal for working in confined or difficult-to-access locations such as warehouses, factories, shopping malls, office buildings and much more.

What safety functions are integrated in the HERON 10 mast platform?

The HERON 10 mast platform offers numerous safety features such as automatic outriggers, emergency hand pump, intuitive controls, floor load indicator, overload protection, safety railings and non-slip floors for safe working.

The HERON 10 mast platform is equipped with a variety of safety features to ensure operator safety and equipment reliability. These include an automatic outrigger for added stability, an emergency hand pump in the event of a power failure, intuitive controls with an emergency stop function, a floor load indicator and an overload protection function. In addition, the model has a safety railing and non-slip floors in the work basket to enable safe working even at great working heights.

How is the HERON 10 mast platform serviced and maintained?

Regular maintenance of the HERON 10 mast platform is important for safety and performance, including inspections of all major components by qualified personnel in accordance with the manufacturer's instructions.

Regular maintenance and servicing of the HERON 10 mast platform is crucial to ensure its operational safety and performance. This includes regular inspections of the engine, hydraulic system, battery, drive, controls, crawler tracks, safety systems and other operationally relevant components. It is recommended to follow the manufacturer's maintenance instructions and to call in trained specialists for maintenance work.

How can I make an inquiry for the HERON 10 mast working platform?

Simply submit a request using the form and we will respond as quickly as possible.

You can easily submit a request using the form above on this page. Enter the required data with your message and send us a non-binding inquiry. We will get back to you as soon as possible.

If you have any further questions, you can contact us via our contact page.
