Buy the RR11T Railroad working platform

Technical Specifications

Working Height

10.50 m

Lateral Range

5.70 m

Load capacity

230 kg

Basket Rotation

70 + 70°

Dimensions (L x W x H)

4.80 x 1.36 x 2.12 m

Max. Travel Speed

10.00 km/h

Dead weight

2.9 metric tons

Operating Diagram for the RR11T Two-Way Work Platform

Operating Diagram RR11T Two-Way Work Platform 2

Technical Specifications for the RR11T Two-Way Rail-Mounted Work Platform

Technical Specifications for the RR11T Two-Way Work Platform

Versatile Use on Rails and Roads

The RR11T is equipped with a chassis featuring a tracked undercarriage that ensures exceptional traction on all types of terrain. This innovative design ensures a low specific weight for the drive unit, enabling safe navigation over sensitive areas such as paved surfaces in track zones and access roads. The chassis also houses the rail drive system for track operations, powered by two hydraulic motors. The crawler track can be rotated 90 degrees relative to the superstructure, facilitating seamless track alignment in open areas. Its design allows for entry onto the tracks without additional tools or structural modifications. Automatic leveling enhances the machine’s agility and stability, making it ideal for use on tracks with varying gauges, including the standard gauge of 1,435 mm.

Safety for Rail Operations

All safety precautions in accordance with the DB Infra Go certification are reliably observed to ensure smooth and safe rail operations. This includes the lift height limit, which ensures that the work platform does not enter the area of the active overhead line, thereby minimizing the risk of electrical hazards. The swing limit prevents the platform from swinging into unwanted areas, thereby enhancing the safety of both operators and the surrounding area. In addition, the work platform is equipped with comprehensive safety equipment, including a first-aid kit for medical emergencies and a fire extinguisher to enable a rapid response in the event of a fire. Anchorage points in the work basket provide additional safety by allowing workers to secure themselves while on the job, which significantly reduces the risk of falls. These measures are an integral part of our commitment to the highest safety standards in rail operations.

Radio Remote Control for Convenient Operation

The radio remote control enables precise and convenient control of the machine by facilitating driving and movement in all directions. With this advanced technology, operators can control the machine from a safe distance, which not only enhances safety but also increases efficiency when performing complex tasks. The remote control’s intuitive user interface ensures that even inexperienced users can navigate the machine with ease, while the remote control’s rugged construction ensures reliable performance under a variety of working conditions.

Technical Details

Standard track width: 1435 mm
Hydrostatic rail drive and braking system
Travel speed: 10 km/h
Crawler track: To optimize single-track operation in confined areas
Automatic leveling: To compensate for superelevation of up to 180 mm
Optional pantograph: Enables distance measurements between the top of the rail and the overhead wire
First-aid kit
Fire extinguisher + mount
Mount for 2 Libo 2/S49 rail stops
Work lights in the basket and above the rail axles
Lifting height limitation when traveling with the overhead line energized
4.3" diagnostic display in the work basket and on the ground control panel
High-performance biodegradable hydraulic oil: Addinol Ecosynth Hees EL 46
Zetfon warning horn
Hydraulic connections for trailer operation (not permitted on DB Infra GO infrastructure)
Diagnostic systems: For easy maintenance and servicing (remote maintenance and telemetry optional)
Kubota diesel engine: For future-proof operation with an integrated diesel particulate filter
Customer portal: Knowledge base with common troubleshooting guides and access to error descriptions and documentation

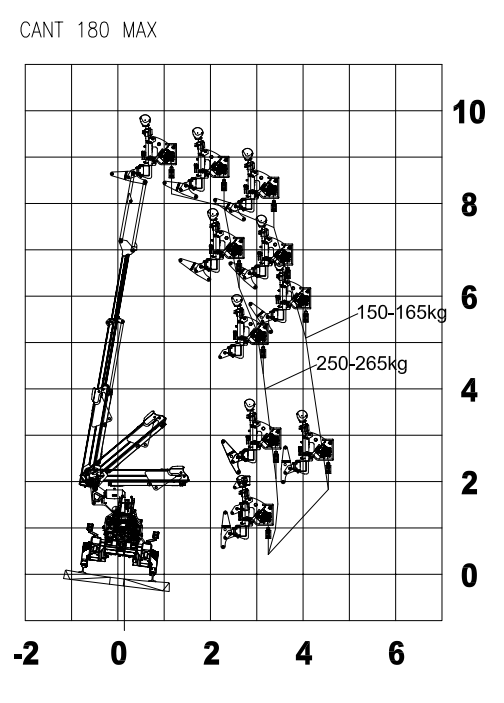

Winch Crane Mode

Remove the work basket to take advantage of expanded application possibilities: A version of the RR11T with a cable winch crane function is currently under development . This allows the work basket to be removed and the same cable winch used on the Spider 18.95 to be installed.

The planned solution enables lifting operations with a load capacity of approximately 250 to 300 kg and further expands the machine’s range of applications.

The RR11T is an advanced and compact two-way aerial work platform weighing 3.5 metric tons that can operate on rails up to a height of 10.5 meters and has a payload capacity of 230 kg, accounting for two people on board. Equipped with a single telescoping boom, it offers versatile applications and can be easily transported on a light-duty trailer. In addition, it features a crawler undercarriage suitable for both on-road and off-road use, a system that allows for quick switching between tracks and rail wheels, and hydraulic rotation that facilitates access to the rail. It is powered by a 10.5 kW Kubota diesel engine; if needed, the model can be equipped with lithium-ion batteries for fully electric operation.
